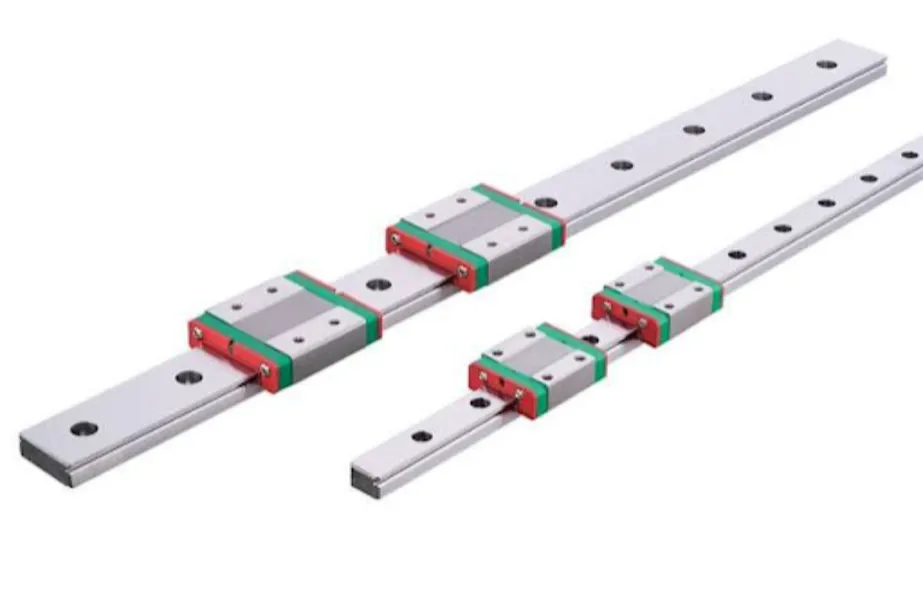

Linear guideways are fundamental to many automated machines because they support moving loads while maintaining a defined travel path. For OEMs evaluating Hiwin Linear Guideways, successful selection requires more than choosing a rail length and block size.
The guideway must be matched to the machine's load, movement, rigidity, installation, and environmental requirements.
Define the Axis Before Selecting Components
Before approaching a supplier, machine designers should document the intended axis.
Useful information includes:
- Moving load
- Static and dynamic forces
- Travel length
- Maximum speed
- Acceleration
- Mounting orientation
- Number of blocks
- Required rigidity
- Expected duty cycle
- Operating environment
This information helps determine the type and size of guideway required.
Understand Load Direction
Linear guides can experience forces from several directions, depending on how the machine is constructed.
A horizontal axis supporting a centred load presents a different engineering condition from an axis carrying an offset load that creates a moment. Block spacing and rail spacing therefore influence system stability.
Designers should calculate the actual load distribution rather than dividing total machine weight equally between blocks without considering moments.
Preload and Rigidity Need Careful Evaluation
Applications requiring higher rigidity may use configurations with defined preload characteristics, but greater preload is not automatically beneficial for every machine.
Preload can influence movement resistance and assembly sensitivity. The appropriate configuration should reflect the accuracy, rigidity, speed, and load requirements of the equipment.
Mounting surfaces must also meet the required tolerances. Precision guideways installed on poorly prepared surfaces cannot deliver their intended performance.
Protection and Lubrication Matter
Industrial environments can expose linear motion components to dust, chips, coolant, and other contaminants.
Designers should consider protective arrangements during the initial machine design rather than treating them as an afterthought. Lubrication accessibility should also be planned so routine maintenance can be performed without unnecessary machine disassembly.
These considerations are especially important for machines expected to operate continuously in manufacturing environments across Bengaluru and Karnataka.
What to Prepare Before Requesting a Quote
OLE Automation Inc supports machine builders, OEMs, and industrial customers in Bengaluru with factory automation and power transmission solutions. When requesting Hiwin Linear Guideways, providing technical application information can make the selection and quotation process more efficient.
Include rail length, block quantity, mounting arrangement, expected loads, operating speed, accuracy requirements, environment, and available drawings wherever possible.
For replacement requirements, existing rail and block identification can also be valuable.
The objective should be compatibility with the complete machine rather than purchasing an isolated guideway component. A correctly specified linear guidance system can support stable motion, while thoughtful installation and maintenance planning can help preserve that performance throughout the machine's operating life.
